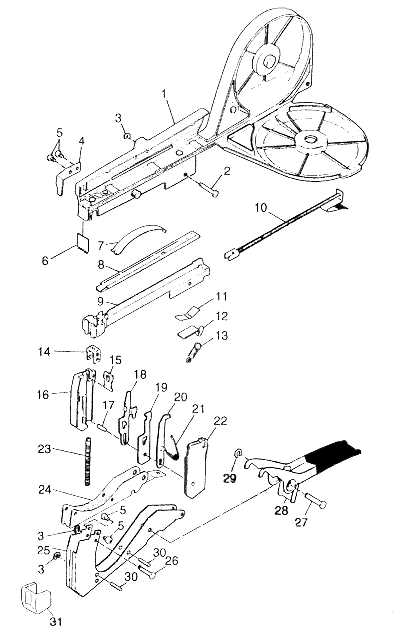

INDEX # |
PARTS |
DESCRIPTION |
ITEM # |
|
1 |
HT70005 |
HT-B A Type Handle Unit (Green) |
3818 |
|
1 |
HT70008 |
HT-B2 A Type Handle Unit (Orange) |
3846 |
|
2 |
FF41229 |
Straight Pin #1229 |
3819 |
|
3 |
JJ10104 |
E Type Retaining Ring 2.3 |
3820 |
|
4 |
HT10066 |
Rod Holder |
3821 |
|
5 |
AA21102 |
Pan Head Machine Screw 3x4 |
3822 |
|
6 |
TC90017 |
Serrated Blades |
3711 |
|
7 |
KK51011 |
Leaf Spring #1011 |
3823 |
|
8 |
HT10025 |
Staple Cover |
3824 |
|
9 |
HT70020 |
Magazine Unit |
3825 |
|
10 |
HT10027 |
Pusher Unit |
3826 |
|
11 |
KK51012 |
Leaf Spring 1012 |
3827 |
|
12 |
HT10026 |
Hook |
3828 |
|
13 |
KK13001 |
Tension Spring |
3829 |
|
14 |
HT10013 |
Clincher |
3830 |
|
15 |
HT11202 |
Support Plate |
3831 |
|
16 |
HT10052 |
A Type Case |
3832 |
|
17 |
FF30103 |
Straight Pin 103 |
3833 |
|
18 |
HT11205 |
Push Rod |
3834 |
|
19 |
HT11206 |
Clutch Plate |
3835 |
|
20 |
HT70004 |
Tape Catch Unit |
3836 |
|
21 |
KK33003 |
Torsion Coil Spring 3003 |
3837 |
|
22 |
HT10053 |
B Type Case |
3838 |
|
23 |
KK23006 |
Compression Spring 3006 |
3839 |
|
24 |
HT11247 |
Cover |
3840 |
|
25 |
HT10051 |
Clincher Arm |
3841 |
|
26 |
FF41221 |
Step Pin 1221 |
3842 |
|
27 |
FF41228 |
Straight Pin 1228 |
3843 |
|
28 |
HT10060 |
B Type Handle Unit |
3844 |
|
29 |
JJ10103 |
E Type Retaining Ring 3.2 |
3845 |
|
30 |
FF21220 |
Spring Pin 3x16 |
3871 |
|
31 |
HT70021 |
Protector Unit |
3872 |
|
Complete Head Assembly |
3870 |
